Introducing Class 6 D-Style SmartMotor™



The drive to improve the performance of its SmartMotor™, while minimizing footprint, set Moog Animatics apart from it’s competitors, reinforcing it’s position as the industry leading provider of fully integrated motors with motion control capabilities.

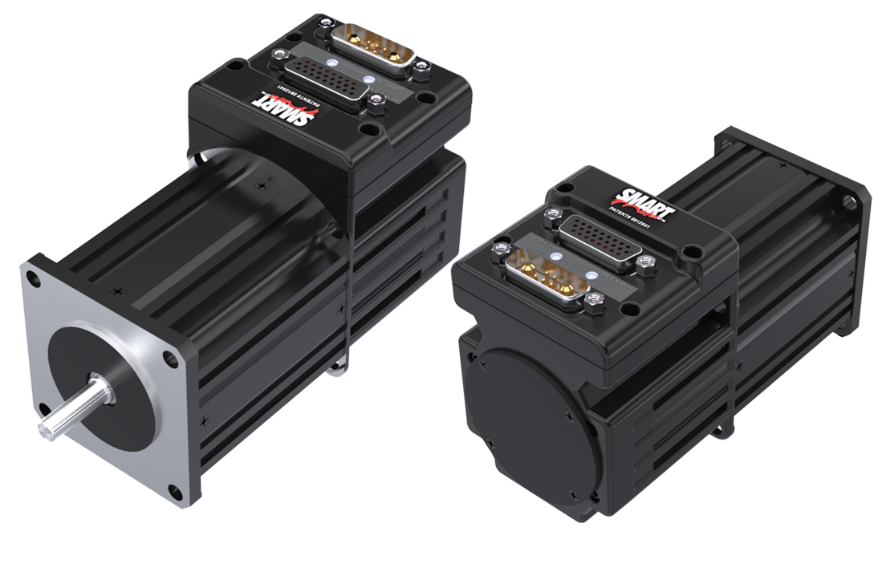

The Class 6 D-style SmartMotor™ offers an extended power range (up to 1kW) in the same compact package of previous series, provides improved torque density and increased performance without affecting the overall design of the machine.

These enhanced capabilities are combines with industrial Ethernet connectivity and a multi-turn absolute encoder enabling extreme design flexibility for any application.

Features

  • Absolute multi-turn battery-less encoder
  • Wider ambient operating temperature range (-20° to 105° C)
  • Industry standard 24 VDC I/O
  • Separate 24 V supply for logical backup
  • NEMA 17, 23 and 34 frame sizes
  • Inline brake options for all models
  • Easy connection to diagnostics over USB
  • Combitronic™ technology is standard

Advantages

  • Fully integrated, compact motion system
  • High noise immunity
  • Industry leading power density ratio
  • High tuning bandwidth
  • Enhanced controls with ability to handle complex applications

PDF

Class 6 D-style SmartMotor™

Download

PDF

Class 6 D-style SmartMotor™ Installation and Startup Guide

Download

PDF

SmartMotor™ Developer’s Guide

Download

PDF

SmartMotor™ Homing Procedures and Methods

Download

Interested in Learning More?

Contact Our Experts
Class 6 D-Style SmartMotor™ Models
